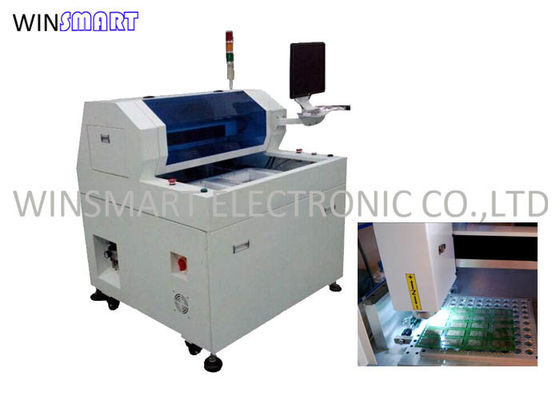

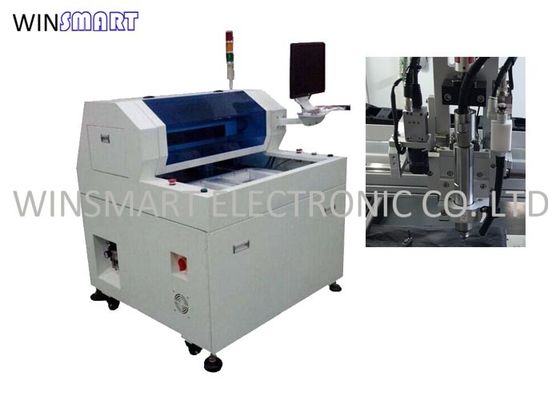

Semi-Auto PCB Depaneling Router Machine CNC PCB Cutting Machine For Precise Separation
PCB Depaneling Router Application:
Widely used in Automotive industry, LED industry, Power source industry, mobile phone industry, computer industry, domestic appliances, etc.,
PCB Depaneling Router Specification:
| I. Hardware | |
| SPINDLE | Morning Star spindle (optional) |
| CCD | Sony 520 line industrial cameras |
| LENS | Computar EX2C |
| Screw | TBI Precision ground ball screw imports |
| Guide | HIWIN widening Imported linear guide rail |
| MOTOR | JiaBao LCF Series |
| I/O CONTRONL CARD | HFC PCI-9074 |
| DRIVER CONTRONL CARD | HFC PCI-9074 |
| I/O CARD | PCI-9074-64pcs/-38pcs |
| Static cleanup | STATIC-ST401A Series |
| Computer | (RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G) |
| Machine interface | AOC LCD17",Logitech mouse |
| 2. software | |
| Control system | Windows XP Professional (Service3,v.3244) |
| Operation GUI | English Windows XP |
| Program edit | Inline |
| Vision system | CCD AOTU offset |
| Control system | F 1.2.88 version |
PCB Depaneling Router Parameters:
| Overall | |
| Dimensions(W*D*H) | 1220mm*1380mm*1240mm |
| Weight | 450KG |
| Height offset | 60~110mm |
| Manipulator | |
| Motor type | JiaBao series |
| Positioning repeatability | 0.001mm |
| Axis working area(max) | 650mm*560mm*50mm |
| Work station | |
| PCB fixation | standard, specialization |
| PCB loading/unloading | manual |
| PCB size (max) | 280*320mm |
| PCB thick (max) | 3.5mm |
| Fixturing | |
| Rigidity fixturing | Customized make fixture |
| Fixturing fixation | machinery |
| Spindle Motor | |
| Power | 150W |
| Spindle | 60000rpm/min |
| Protect | self/wind cooling |
| Change cutter | Specialization |
| Routing capability | |
| Cutting speed(max.) | 80mm/s |
| Driving speed(max.) | 2500mm/s |
| Precision of cutting | 0.01mm |
| Vacuum System | |
| Vacuum power | 3.5KW AC 380V |
| Vacuum | plumb |
| Utilities | |
| Power | 2.0KW AC380V |
| Air supply | 4-6KG/cm2 |
| Programming | |
| Program edit | Inline |
| Function edit | Line,arc,circula,U-curve |
| Program storage | HDD |
| Vision system | SONE colour CCD |
| milling cutter offset | AUTO |
| Vacuum setup | AUTO |
| Operation Monitors | |
| Iindicator | Iindicator Machine state |
| tool check | Automatic detection tool life, the use of time testing |
| Motor protect | Have overheating, overload, low voltage protection function |
| motor over loading check | Have Overload, the line is normal, low voltage protection function |
| Tool usable time | Automatic detection tool life, |
| Data statistic | Separate board model, separating count, diverse counting methods |
| Error record | Software automatically records all alarms memory of machines |
| III. Accuracy | |
| Axis precision | 0.001mm |
| Cutting precision | 0.1mm |
| IV. Safety | |
| Working area protect | With four sealed protection |
| Door sensor | Front and rear safety door micro-switch sensor (optional) |
| Exigency stop button |
PCB Depaneling Router Features:
1. 1.X10 zoom-in image makes programming easier&increase the accuracy of point setting.
2. Two sliding table provides simultaneously in-and-out movement to reduce the tack time for better productivity.
3. AUTO MARK offset system.CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting.
4. Has routing bit life time checking and alarm system to remind operator to change routing bits when it finish 120M cutting. And routing bit first 2mm cut the first milling point, middle 2mm cut the second milling point, the last 2mm cut the third milling point to increase its life time.
PCB Depaneling Router Other Models:
PCB Router FAQ:
1.A: What is life time of routing bit?
Q:150-300 meters.
2.A: Can this model cut Aluminum PCB boards?
Q: Yes, it can.
3.A: What about PCB positioning?
Q: Use customized jig for positioning.
4.A:What is the spindle for the inline PCB router?
Q:Germany SycoTec 4025.
5.A:How to package it?
Q:Router and cleaner is packaged into separated wooden case after vacuum.
6.A:Is on-site installation and training available.
Q:Yes, it is available.
7.A:What is your terms of delivery?
Q:We accept ex-work, FOB, CIF, DDU, DDP, etc.
Our Service:
1. Lifetime technical support and 2 years warranty.
2. Free replacement or refund would be done in case of any quality problem.
3. Fast response/feedback within 12 hours
4. Engineers are available to be sent to do oversea installation and training.
5. Solid packaging to prevent damage from transportation.
|
