| Brand Name: | Winsmart |
| Model Number: | SMTZT-250 |
| MOQ: | 1개 세트 |
| 가격: | USD1-10000/Set |
| Packaging Details: | 합판 상자 |
| Payment Terms: | L/C (신용장), 전신환, 웨스턴 유니온 |

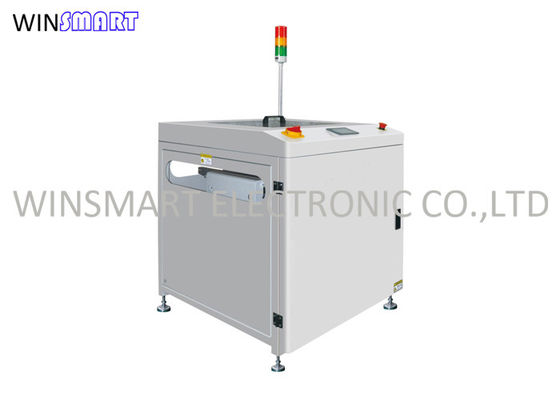

PCB Handling Machine SMT Automatic 90 Degree Turning Machine
Product Description
Solid and stable design
Stable and reliable integrated control system
HMI control panel, easier operation
Enclosed design with built-in torque limiter ensures highest level of safety
The top cover can be opened to facilitate the maintenance of machine
90 degrees or pass through for optional
Machine always fault monitoring
SMEMA compatible
Specifications:
| Model No | SMTZT-250 | SMTZT-350 |
| PCB Size(mm) | (50x50)-(350x250) | (50x50)-(460x330) |
| Machine Size(mm) | 600x650x1300 | 700x750x1300 |
| Weight(kg) | 170 | 195 |
Technical Parameters:
| Function | Cycle Time | Power Supply | Air Pressure |
| It is used to change direction in production line | Approx 15 seconds | 100-230V, 1PH, Max 300VA | 4-6Bar |
| Transport Height | Transportation Direction | Air Consumption | PCB Thickness |
| 900±20mm(or customized) | L to R or R to L | Max 15L/Min | Min 0.6mm |
PCB Transport Direction:
Packaging:
1. Fix the machine base on the wooden base by screws
2. Vacuum
3. Package into a wooden case
Delivery Terms:
1. Ex-work/FOB/CIF/DDU, up to clients
2. Production leadtime: 3-7 days
|
|
