제품 상세 정보:
|
| 용법: | PCB 절단 | Pcb 간격: | 0.4-3.5mm |
|---|---|---|---|
| 스핀들 속도: | 사이코테크 4024HY | 절단 정밀도: | ±0.05mm |
| 최대 PCB 크기: | 410x460mm | 이름: | pcb 분리기 |
| 하이 라이트: | Routed PCB Separator Machine,Max 100mm/s PCB Separator Machine,Routed PCB Depaneling Cutter |
||

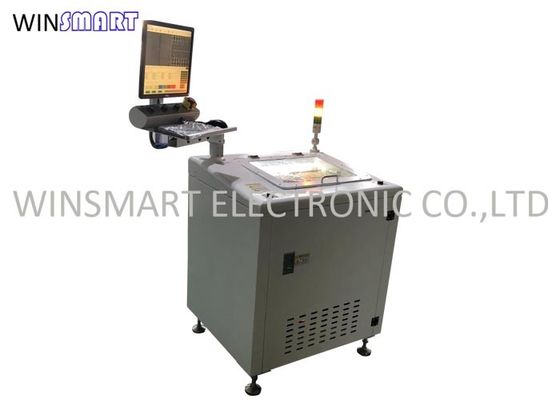

Routed PCB Separator Machine With Friendly Software Max 100mm/s Cutting Speed
PCB Router Features:
1. Optional single/dual platform
2. PC and CCD vision system
3. Programming with compensation and dust collection
4. Available for max 460mm boards
5. Flexible for different type of products
6. Open type platform for LD/ULD and auto upgrade with robot
PCB Router Specification:
| Model Number | SMTR17 |
| Machine Size | 850(L) x 750(W) x 1455(H)mm |
| Voltage | 380V/50Hz, 2.5KW |
| Max PCB Size | 410x460mm (single table), 260x310mm(dual table) |
| PCB Thickness | 0.4-5mm |
| Feeding Mode | Manual |
| PCB Positioning | Customized fixture |
| Programming | Vision teaching, inline programming |
| Cutting Spindle | SycoTec 60000rpm/min(standard) |
| Cooling Type | Self cooling |
| Dust Collection Mode | Bottom collection |
| Cutting Speed | 1-100mm/s |
| Repeat Accuracy | ±0.01mm |
| Routing Bit | 0.8-3.0 Diameter, right rotation |
| Repeat Accuracy | ±0.02mm |
| Control System | Industrial PC |
| Spindle | Germany SycoTec 4015HY |
| Motion Control | 4 axis motion control board |
| Lead screw | C5 grinding screw lead |
| Camera | Germany imaging 40W greay camera |
| LCD | 17 inch |
Package:
