제품 상세 정보:
|
| 새롭습니다: | 100% | 세륨 승인: | 예 |
|---|---|---|---|
| 스핀들: | 사이코테크 4024HY | 절단 정밀도: | ±0.05mm |
| 보증: | 1년이요 | 이름: | PCB 라우터 커터 |
| 하이 라이트: | Industrial PC Control PCB Depanelization Machine,Self Cooling PCB Depanelization Machine,2.5KW PCB Router Machine |
||

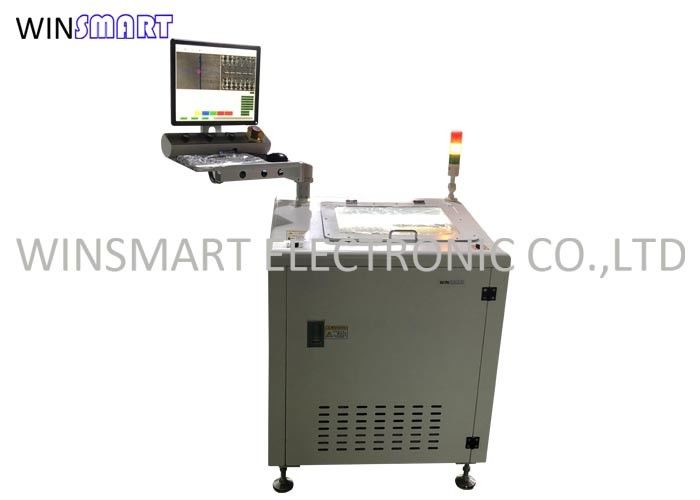

PCB Router Cutter PCB Depanelization Method for 0.6-2.5mm Router Boards
Description:
SMTR17 is a kind of equipment which mainly uses milling cutter running at high speed to separate multi connected PCB according to pre editing path. It can replace manual breaking or cutting defects of c-cut or push, improve product quality and reduce scrap rate. This machine adopts latest operating system with man-machine interface. The cutting path can be modified by high pixel CCD teaching and editing, and it can also be modified step by step. Using the rotating platform as the loading and unloading device of PCB, the idle time of the machine can be effectively reduced, and the ideal production efficiency can be achieved.
PCB Router Features:
1. Equipped with high pixel color CCD magnifying lens, auxiliary program teaching and editing simulation function, more accurate precision and clearer image.
2. Tool life monitoring: after cutting a certain distance, the milling cutter will automatically rise / fall to the position of the cutting edge which has not been cut. The up and down
distance and times can be set freely according to the length of the cutting edge, so as to prolong the life of the milling cutter.
3. The transparent safety door design makes the processing process clear at a glance. The door opens and stops to prevent accidents during processing, providing a safe operating environment for users
4. Automatic mark positioning and correction system, moving path display and tracking, automatic focus correction function, higher cutting accuracy.
5. Three same or different programs can be used on the same fixture to locate by mark, so as to ensure the cutting accuracy
6. Powerful dust collector can clean and solve the problem of cutting dust. The imported fan makes the dust collection more clean and low noise.
7. Use the left and right worktable to exchange processing and place PCB substrate, reduce waiting time and increase production capacity.
8. In general, the cutting machine is electrical, and the worktable is pneumatic. If it works for a long time, the PCBA may be damaged due to insufficient air pressure. The machine is completely powered on, so as to ensure its accuracy and stability.
PCB Router Specification:
| Model Number | SMTR17 |
| Machine Size | 850(L) x 750(W) x 1455(H)mm |
| Voltage | 380V/50Hz, 2.5KW |
| Max PCB Size | 410x460mm (single table), 260x310mm(dual table) |
| PCB Thickness | 0.4-5mm |
| Feeding Mode | Manual |
| PCB Positioning | Customized fixture |
| Programming | Vision teaching, inline programming |
| Cutting Spindle | SycoTec 60000rpm/min(standard) |
| Cooling Type | Self cooling |
| Dust Collection Mode | Bottom collection |
| Cutting Speed | 1-100mm/s |
| Repeat Accuracy | ±0.01mm |
| Routing Bit | 0.8-3.0 Diameter, right rotation |
| Repeat Accuracy | ±0.02mm |
| Control System | Industrial PC |
| Spindle | Germany SycoTec 4015HY |
| Motion Control | 4 axis motion control board |
| Lead screw | C5 grinding screw lead |
| Camera | Germany imaging 40W greay camera |
| LCD | 17 inch |

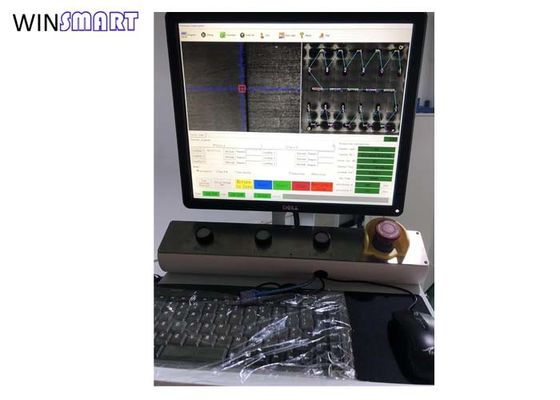

Friendly English Version Software:
Package:
