제품 상세 정보:
|
| Pcb 간격: | 0.8-3.0mm | 신청: | 탭 PCBA 패널 |
|---|---|---|---|
| 절단 정밀도: | ±0.05mm | 온사이트 서비스: | 예 |
| 진공 청소기: | 3HP/2.2KW | 절단기: | 0.8-3.0mm |
| 사용자 교범: | 1PC | 상품 이름: | CNC PCB 제분기 |
| 하이 라이트: | Bottom Dust Collection PCB Milling Machine,3.0mm Thickness PCB Milling Machine,Bottom Dust Collection CNC PCB Mill |
||

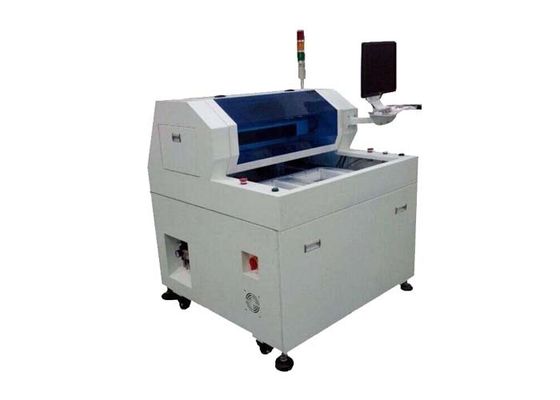

Automatic CNC PCB Milling Machine Bottom Dust Collection Design
PCB Depaneling Router Features:
1. 1.X10 zoom-in image makes programming easier&increase the accuracy of point setting.
2. Two sliding table provides simultaneously in-and-out movement to reduce the tack time for better productivity.
3. AUTO MARK offset system.CCD image could check&simulate the path or routing to reduce unnecessary mistake before cutting.
4. Has routing bit life time checking and alarm system to remind operator to change routing bits when it finish 120M cutting. And routing bit first 2mm cut the first milling point, middle 2mm cut the second milling point, the last 2mm cut the third milling point to increase its life time.
Machine Specification:
| I. Hardware | |
| SPINDLE | Morning Star spindle (optional) |
| CCD | Sony 520 line industrial cameras |
| LENS | Computar EX2C |
| Screw | TBI Precision ground ball screw imports |
| Guide | HIWIN widening Imported linear guide rail |
| MOTOR | JiaBao LCF Series |
| I/O CONTRONL CARD | HFC PCI-9074 |
| DRIVER CONTRONL CARD | HFC PCI-9074 |
| I/O CARD | PCI-9074-64pcs/-38pcs |
| Static cleanup | STATIC-ST401A Series |
| Computer | (RMC-8401/6113LP4/300ATX/8651VNA/P4 2.8G 2CPU(S)/1G DDR/80G) |
| Machine interface | AOC LCD17",Logitech mouse |
| 2. software | |
| Control system | Windows XP Professional (Service3,v.3244) |
| Operation GUI | English Windows XP |
| Program edit | Inline |
| Vision system | CCD AOTU offset |
| Control system | F 1.2.88 version |
Machine Parameters:
| Overall | |
| Dimensions(W*D*H) | 1220mm*1380mm*1240mm |
| Weight | 450KG |
| Height offset | 60~110mm |
| Manipulator | |
| Motor type | JiaBao series |
| Positioning repeatability | 0.001mm |
| Axis working area(max) | 650mm*560mm*50mm |
| Work station | |
| PCB fixation | standard, specialization |
| PCB loading/unloading | manual |
| PCB size (max) | 280*320mm |
| PCB thick (max) | 3.5mm |
| Fixturing | |
| Rigidity fixturing | Customized make fixture |
| Fixturing fixation | machinery |
| Spindle Motor | |
| Power | 150W |
| Spindle | 60000rpm/min |
| Protect | self/wind cooling |
| Change cutter | Specialization |
| Routing capability | |
| Cutting speed(max.) | 80mm/s |
| Driving speed(max.) | 2500mm/s |
| Precision of cutting | 0.01mm |
| Vacuum System | |
| Vacuum power | 3.5KW AC 380V |
| Vacuum | plumb |
| Utilities | |
| Power | 2.0KW AC380V |
| Air supply | 4-6KG/cm2 |
| Programming | |
| Program edit | Inline |
| Function edit | Line,arc,circula,U-curve |
| Program storage | HDD |
| Vision system | SONE colour CCD |
| milling cutter offset | AUTO |
| Vacuum setup | AUTO |
| Operation Monitors | |
| Iindicator | Iindicator Machine state |
| tool check | Automatic detection tool life, the use of time testing |
| Motor protect | Have overheating, overload, low voltage protection function |
| motor over loading check | Have Overload, the line is normal, low voltage protection function |
| Tool usable time | Automatic detection tool life, |
| Data statistic | Separate board model, separating count, diverse counting methods |
| Error record | Software automatically records all alarms memory of machines |
| III. Accuracy | |
| Axis precision | 0.001mm |
| Cutting precision | 0.1mm |
| IV. Safety | |
| Working area protect | With four sealed protection |
| Door sensor | Front and rear safety door micro-switch sensor (optional) |
| Exigency stop button |
Warranty period and service scope:
The equipment has been debugged and checked before leaving the factory, and the company will guarantee its use within the following conditions.
1. Warranty period
One year after leaving the factory, the main shaft runs 3500 hours.
2. Service scope
During the warranty period, the company will repair the fault free of charge, but the following conditions will not be covered by the warranty.
Suggestion: please check the instruction manual or contact our company if you encounter any problem that you don't understand in the actual process
