| Brand Name: | Winsmart |
| Model Number: | SMTPD2 |
| MOQ: | 1개 세트 |
| 가격: | USD1-10000/set |
| Packaging Details: | 합판 상자 |
| Payment Terms: | L/C (신용장), 전신환, 웨스턴 유니온 |

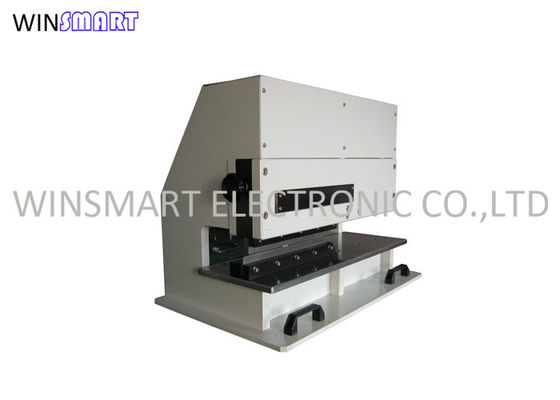

Metal Core PCB Depanel For V-Groove PCB Board Cutting with 2 Linear Blades
Principle:
It uses two linear blades to separate boards with less stress, like a scissor.
And operator cannot mis-feed boards.
It is widely used in modern V-score PCB industry, improve cutting effect to avoid component damage.
Specification:
| Model | SMTPD2 |
| Machine Dimension | 780x500x620mm |
| Max Cutting Length | 330mm |
| PCB Material | FR4, MCPCB, CEM, Copper Boards |
| Air Pressure | 0.4-0.7MPa |
| PCB Thickness | 0.3-3.5mm |
| Power | 110/220V |
| Machine Weight | 180kgs |
Features:
1. Separates boards up to 3.5mm thick.
2. Shears boards safely with parts as close as 0.5mm to the score line,including ceramic capacitors.
3. Operator foolproof! Panels cannot be inserted into the knives except on the score line.
4. Handles high components up to 70mm.
5. Blades can be re-sharpened.
6. Cutting stress is less than 300 uE.
7. Easy adjusting of distance between knives.
Installation:
1. Cutter Installation, with top get close to knife rest, and then lock-screw.
2. Connect the air tube then Stamp the pedal.Make the top knife remain undercutting state.
3. Install bottom knife,with bottom get close to knife rest, and then lock-screw
4. Cutter Adjustion :Adjust 8 pcs black M8 grub screws to balance top knife and botton knife.
|
|
