| Brand Name: | Winsmart |
| Model Number: | SMTAD4 |
| MOQ: | 1개 세트 |
| 가격: | USD1-10000/set |
| Packaging Details: | 합판 상자 |
| Payment Terms: | L/C (신용장), 전신환, 웨스턴 유니온 |

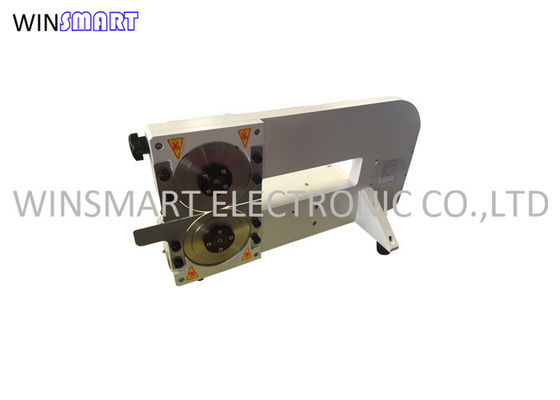

Pizza Cutter PCB Depanelizer 300mm Cutting Length PCB Cutting Machine
Technical Specification:
|
|
A : > 0.25mm B: 1.0mm(Max)
Standard cutter : C2: ≧2mm C1: ≧0.3mm Θ: ≧200
|
| Max.Cutting length (mm) | 15-300mm |
| Cutting thickness (mm) | 0.8~2.0 |
| Cutting Speed (mm/s) | 0~400 |
| Voltage (VAC) | 220 |
| Machine Weight (KG) | 42 |
Features:
1. Minimize the shearing stress to avoid micro-cracks of the solder joints.
2. Guiding device of the “V-CUT” can easy setting the edge of PCB and the height of the tabletop to fit for difference kinds of thickness of PCB.
3. Easy operating modes: Manual by handwheel, semi-automatic by pressing the start button or fully-automatic by continuous running.
4. Cutters can be re-grinded.
5. The shape of the cutter can be customer made.
Installation:
Placing the machine on the table which should be flat and stable.
The parallelism of the machine can be adjusted by the foot on a small scale
Power connection:
Connect the power plug to the 220VAC 50HZ / 110VAC 60HZ power supply.
Turn on the power switch and lower blade start to turn, then the machine can work.
|
|
| Brand Name: | Winsmart |
| Model Number: | SMTAD4 |
| MOQ: | 1개 세트 |
| 가격: | USD1-10000/set |
| Packaging Details: | 합판 상자 |
| Payment Terms: | L/C (신용장), 전신환, 웨스턴 유니온 |
Pizza Cutter PCB Depanelizer 300mm Cutting Length PCB Cutting Machine
Technical Specification:
|
|
A : > 0.25mm B: 1.0mm(Max)
Standard cutter : C2: ≧2mm C1: ≧0.3mm Θ: ≧200
|
| Max.Cutting length (mm) | 15-300mm |
| Cutting thickness (mm) | 0.8~2.0 |
| Cutting Speed (mm/s) | 0~400 |
| Voltage (VAC) | 220 |
| Machine Weight (KG) | 42 |
Features:
1. Minimize the shearing stress to avoid micro-cracks of the solder joints.
2. Guiding device of the “V-CUT” can easy setting the edge of PCB and the height of the tabletop to fit for difference kinds of thickness of PCB.
3. Easy operating modes: Manual by handwheel, semi-automatic by pressing the start button or fully-automatic by continuous running.
4. Cutters can be re-grinded.
5. The shape of the cutter can be customer made.
Installation:
Placing the machine on the table which should be flat and stable.
The parallelism of the machine can be adjusted by the foot on a small scale
Power connection:
Connect the power plug to the 220VAC 50HZ / 110VAC 60HZ power supply.
Turn on the power switch and lower blade start to turn, then the machine can work.
