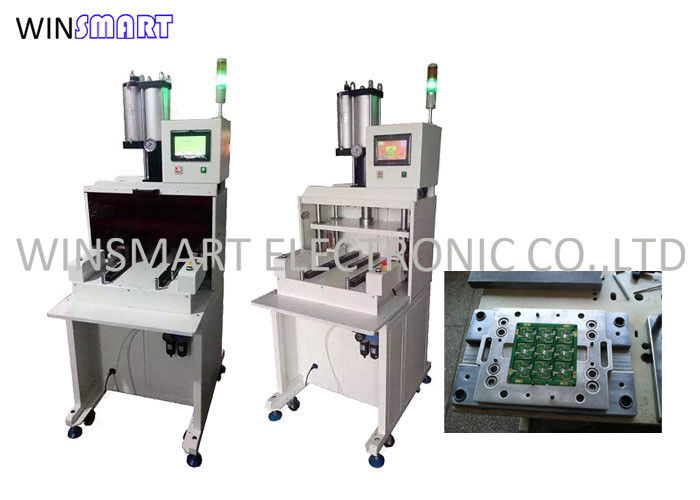

Flexible PCB Punch Machine Covering FR4, FPC and Aluminum Boards
Advantages:
1. Pneumatic, environmental protection
2. High efficiency, suitable for high volume PCBs
3. Security door protection, ensure safe production
Technical Parameters:
| Air pressure | 0.4MPa-0.7MPa |
| Power source | 220VAC |
| Power | 100W |
| Contribute | 10T |
| Machine dimension | 770X910X1940 |
| Structure | lower mold longitudinal movement, vertical movement of upper mold |
| Weight | 700KG |
Specification:
| Working area | 460*320mm |
| Working pressure | 0.45-0.7Mpa |
| Cutting precision | ±0.05mm |
| Cycle time | 7-15 seconds |
| Output | 8T |
| PCB/FPC thickness | 0.08-3.5MM |
| PCB/FPC material | FPC, FR1, FR4, CEM-1, CEM-3, MCPCB |
| Cutting mode | Punching |
| Punch fixture | Die tooling(mold) |
| Working Property |
LCD display, Automatically records the number of processed products, automatic punching |
| Transmission port | International standard |
| Operation Language | English |
| Stroke | 50MM |
| Mold height | 170MM |
| Power | 380/220V |
| Fuse | 3A |
| Machine dimension | 820x740x1750mm |
| Machine weight | 680kgs |
Features:
1. This punching machine is specially designed for cutting and punching of all kinds of panels with molds, such as FPC and PCB hard board. It can avoid all the problems caused by manual pulling, folding, pliers, shearing, and so on. Flash and other undesirable phenomena.
2. According to different products or die toolings, arbitrarily adjust the punching speed, punching pressure and punching time.
3. Easy to replace die toolings, touch screen has die tooling replacement password to ensure safty production.
4. Vertical movement of lower mold for easy loading and unloading panel
5. Using two-hand buttons synchronization (1 second) to control, to eliminate human security risks
6. Use clean gas, no oil, low power, energy saving, easy maintenance, speed and output stability.
7.Auto or manual mode is optional, computer couting and program combination, the same day output and total output record at the same time, convenient statistics, and the quasi-quasi-and efficient
8. Pneumatic technology, an air compressor can work for more than one punch, normal use and post-maintenance costs lower than other types of punching machine.
9. Has stop working and alarm function due to air pressure issue, to ensure adequate power& quality.
Installation(Non-professionals prohibit operation)
1. Handling (the machine must use forklifts or forklift handling)
2. Electrical Installation: Connect gas and power source
3. Connect gas source, open hand slide valve, lifting the valve cover to rotate the cover to adjust air pressure to be 0.6MPa,then press down the cover
