| Brand Name: | Winsmart |
| Model Number: | SMTL460 |
| MOQ: | 1개 세트 |
| 가격: | USD1-150K/set |
| Packaging Details: | 합판 상자 |
| Payment Terms: | L/C (신용장), 전신환, 웨스턴 유니온 |

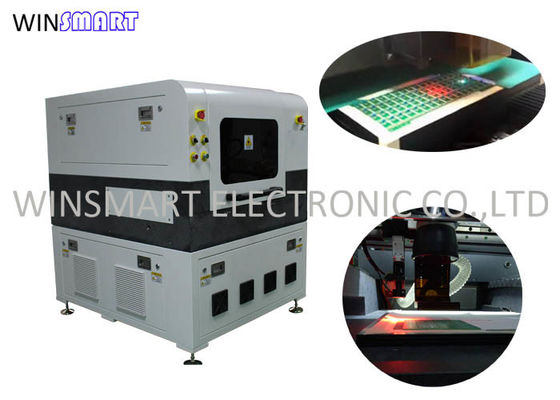

UV Laser Cutting Machine For Flex Printed Circuit Board ±1μm Precision
Specification:
| Laser | Q-Switched diode-pumped all solid-state UV laser |
| Laser Wavelength | 355nm |
| Laser Source | Optowave UV 15W@30KHz |
| Positioning Precision of Worktable of Linear Motor | ±2μm |
| Repetition Precision of Worktable of Linear Motor | ±1μm |
| Effective Working Field | 460mmx460mm(Customizable) |
| Scanning Speed | 2500mm/s (max) |
| Working field | 40mmх40mm |
Clean and Precise Cutting:
Lasers make clean, burr-free and precise cuts against the edge of circuits and other important components—improving overall design flexibility without damaging the substrate. Because you don’t have to reorder parts or sharpen bits and blade, laser systems are also more cost effective.
Application:
Daily Maintenance
1. Please keep the working room clean.
2. In the working condition of the machine, please keep the indoor temperature at + -22 ° C
3. Please keep indoor humidity below 60%.
4. Check if the cooler machine coolant is above the alarm line.
5. Check the cooler machine temperature is stable at the required temperature.
6. Before copying files, check U disk antivirus or formatted and then copy to prevent computer poisoning.
7. Check if exhaust is normal.
Weekly Maintenance
1. Body surface cleaning.
2. Cleaning of platform, guards and surface of marble.
3. Laser head cover cleaning.
4. Laser head protection lens cleaning.
5. CCD to the laser head distance correction.
Monthly Maintenance
1. Galvanometer correction
2. Oil adding for rail
3. External circuit maintenance of the machine
4. Gas tube, exhaust fan maintenance
5. Scrap the trash every month
6. Do clean-up on computer software and files
Annual Maintenance
1. Internal dust cleaning, internal wiring, electrical components maintenance.
2. Inspection and wiping of grating ruler
|
