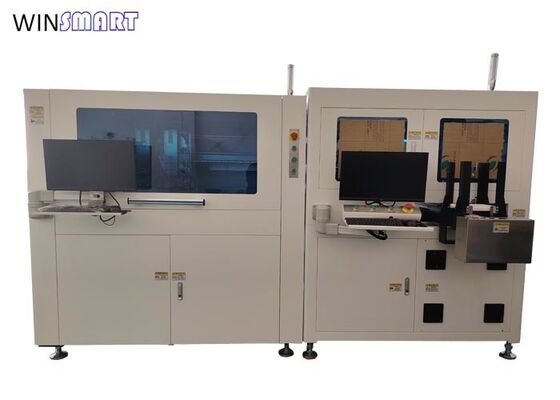

| 브랜드 이름: | Winsmart |
| 모델 번호: | smtirx |
| 모크: | 1세트 |
| 가격: | USD20000-80000 |
| 포장 세부 사항: | 합판 케이스 |
| 지불 조건: | T/T,L/C,웨스턴 유니온 |
| Specification | Details |
|---|---|
| Machine Size | Approx 1450(L) x 1100(W) x 1600(H) mm |
| Machine Weight | Approx 800 kg |
| Max PCB Size | 350x350mm (customized), Dual tables |
| PCB Thickness | 0.4-6mm |
| Transmission Height | 900±50mm |
| Transmission Direction | Left → Right or Right → Left |
| Transportation Speed | 1500mm/s |
| Feeding Mode | Section type transportation guide rail |
| Rail Width Adjustment | Manual |
| Communication Signal | SMEMA |
| PCB Positioning | Fixtures positioning |
| Picking System | Vacuum, 40-60 nozzles |
| Cutting Spindle | 80000rpm/min (standard) |
| Cooling Type | Self cooling |
| Automatic Tool Change | Manual |
| Break Knife Checking | Yes |
| Cutting Accuracy | ±0.05mm |
| Routing Bit | 0.8-3.0 Diameter, right rotation |
| Repeat Accuracy | ±0.02mm |
| Coordinate Moving Speed | 1000mm/s |
| Unloading Mode | ESD Belt |
| Tool Detection | Yes |
| Procedure Programming | Gerber Drawing Import/Editing Program by Visual |
| Air Supply | 5-8kgs/cm² |
| Power Supply | AC 220V, 50/60Hz, 3KW |
| Specification | Details |
|---|---|
| Power Supply | AC220V 50Hz/3KW |
| Air Supply | 0.6MPa |
| Direction | L→R |
| Weight | ≈1200kg |
| Rail Width Adjustment | Auto |
| Communication | SMEMA |
| Tray Size | max 400x450mm |
| Tray Storage Height | 500 mm |
| Tray Moving Speed | 1000 mm/s |
| OS | WIN10 |
| PCB Positioning | Fixture |
| Counting Function | Support |
| Classified Storage | OK, NG, Empty Tray |
| MES | Yes |
| Control | Industrial PC |
| Operation Mode | Human-machine interface |
| PCB Transportation Mode | Coordinate system transportation + vacuum suction cup |
| Operation permissions | 3 grades |
| Tray Storage Quantity | 10 |
| Camera | Yes |
| AGV Connection | Support |
| NG Judgment | Support |
|
|
| 브랜드 이름: | Winsmart |
| 모델 번호: | smtirx |
| 모크: | 1세트 |
| 가격: | USD20000-80000 |
| 포장 세부 사항: | 합판 케이스 |
| 지불 조건: | T/T,L/C,웨스턴 유니온 |
| Specification | Details |
|---|---|
| Machine Size | Approx 1450(L) x 1100(W) x 1600(H) mm |
| Machine Weight | Approx 800 kg |
| Max PCB Size | 350x350mm (customized), Dual tables |
| PCB Thickness | 0.4-6mm |
| Transmission Height | 900±50mm |
| Transmission Direction | Left → Right or Right → Left |
| Transportation Speed | 1500mm/s |
| Feeding Mode | Section type transportation guide rail |
| Rail Width Adjustment | Manual |
| Communication Signal | SMEMA |
| PCB Positioning | Fixtures positioning |
| Picking System | Vacuum, 40-60 nozzles |
| Cutting Spindle | 80000rpm/min (standard) |
| Cooling Type | Self cooling |
| Automatic Tool Change | Manual |
| Break Knife Checking | Yes |
| Cutting Accuracy | ±0.05mm |
| Routing Bit | 0.8-3.0 Diameter, right rotation |
| Repeat Accuracy | ±0.02mm |
| Coordinate Moving Speed | 1000mm/s |
| Unloading Mode | ESD Belt |
| Tool Detection | Yes |
| Procedure Programming | Gerber Drawing Import/Editing Program by Visual |
| Air Supply | 5-8kgs/cm² |
| Power Supply | AC 220V, 50/60Hz, 3KW |
| Specification | Details |
|---|---|
| Power Supply | AC220V 50Hz/3KW |
| Air Supply | 0.6MPa |
| Direction | L→R |
| Weight | ≈1200kg |
| Rail Width Adjustment | Auto |
| Communication | SMEMA |
| Tray Size | max 400x450mm |
| Tray Storage Height | 500 mm |
| Tray Moving Speed | 1000 mm/s |
| OS | WIN10 |
| PCB Positioning | Fixture |
| Counting Function | Support |
| Classified Storage | OK, NG, Empty Tray |
| MES | Yes |
| Control | Industrial PC |
| Operation Mode | Human-machine interface |
| PCB Transportation Mode | Coordinate system transportation + vacuum suction cup |
| Operation permissions | 3 grades |
| Tray Storage Quantity | 10 |
| Camera | Yes |
| AGV Connection | Support |
| NG Judgment | Support |
